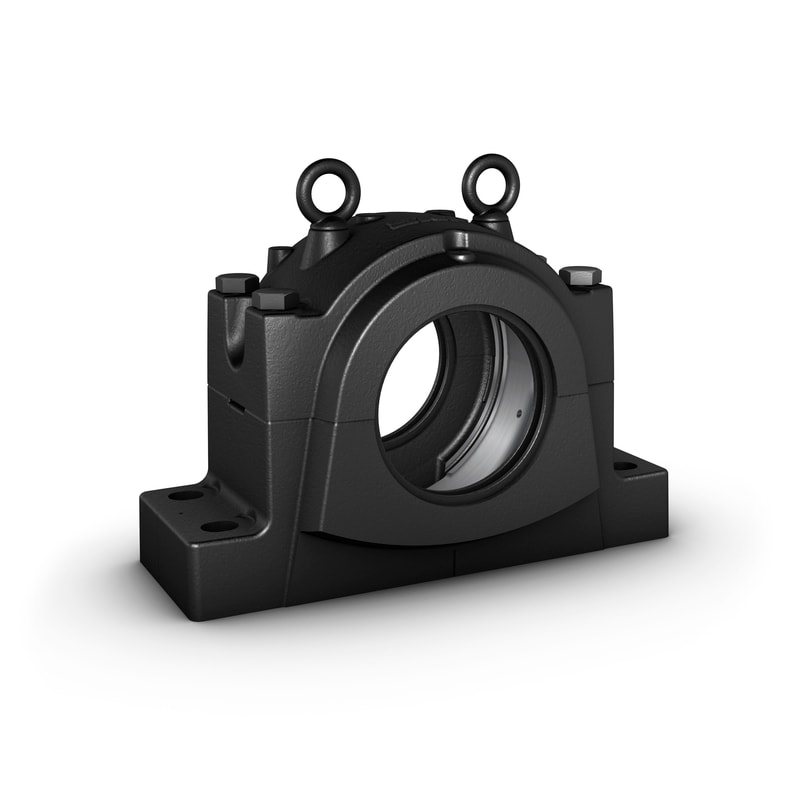

محفظه های بلوک بالش تقسیم شده – سری SNL 30 ، 31 و 32

محفظه های بلوک بالش (plummer) SNL در سری های 30 ، 31 و 32 مقاوم و مناسب برای شرایط سخت کار هستند. آنها یاتاقانهای ترکیبی را قادر می سازند تا حداکثر عمر مفید را با کاهش نیاز به تعمیر و نگهداری به دست آورند. انواع مختلف مسکن و طرح های مهر و موم در دسترس است ، استفاده از خانه های متناسب را تقریباً غیرضروری می کند و امکان ایجاد مقرون به صرفه بودن تحمل را فراهم می کند.
جزئیات محصول
به فهرست یاتاقانهای تحمل SKF و واحدهای یاطاقان غلتکی مراجعه کنید.
  • نصب آستین آداپتور
  • نصب آستین و مهر و موم روغن
  • نصب و راه اندازی سیلندریک
DesignationShaft diameterPrincipal housing dimensions
WidthHeightCentre heightLength
[]da[mm]A[mm]H[mm]H1[mm]L[mm]
SNL 3134 ATURA150226333170510
SNL 3134 ATURT150226333170510
SNL 3134 TURA150226333170510
SNL 3134 TURT150226333170510
SNL 3134/5.15/16 ATURA150.813226333170510
SNL 3134/5.15/16 ATURT150.813226333170510
SNL 3134/5.15/16 TURA150.813226333170510
SNL 3134/5.15/16 TURT150.813226333170510
SNL 3036 ATURA160226333170510
SNL 3036 ATURT160226333170510
SNL 3036 TURA160226333170510
SNL 3036 TURT160226333170510
SNL 3136 ATURA160235353180530
SNL 3136 ATURT160235353180530
SNL 3136 TURA160235353180530
SNL 3136 TURT160235352180530
SNL 3036/6.7/16 ATURA163.513226333170510
SNL 3036/6.7/16 ATURT163.513226333170510
SNL 3036/6.7/16 TURA163.513226333170510
SNL 3036/6.7/16 TURT163.513226333170510
SNL 3136/6.7/16 ATURA163.513235353180530
SNL 3136/6.7/16 ATURT163.513235353180530
SNL 3136/6.7/16 TURA163.513235353180530
SNL 3136/6.7/16 TURT163.513235353180530
SNL 3038 ATURA170235353180530
SNL 3038 ATURT170235353180530
SNL 3038 TURA170235353180530
SNL 3038 TURT170235352180530
SNL 3138 ATURA170255375190560
SNL 3138 ATURT170255375190560
SNL 3138 TURA170255375190560
SNL 3138 TURT170255375190560
SNL 3038/6.15/16 ATURA176.213235353180530
SNL 3038/6.15/16 ATURT176.213235353180530
SNL 3038/6.15/16 TURA176.213235353180530
SNL 3038/6.15/16 TURT176.213235353180530
SNL 3138/6.15/16 ATURA176.213255375190560
SNL 3138/6.15/16 ATURT176.213255375190560
SNL 3138/6.15/16 TURA176.213255375190560
SNL 3138/6.15/16 TURT176.213255375190560
SNL 3040 ATURA180255375190560
SNL 3040 ATURT180255375190560
SNL 3040 TURA180255375190560
SNL 3040 TURT180255375190560
SNL 3140 ATURA180272411210610
SNL 3140 ATURT180272411210610
SNL 3140 TURA180272411210610
SNL 3140 TURT180272411210610
SNL 3040/7.3/16 ATURA182.563255375190560
SNL 3040/7.3/16 ATURT182.563255375190560
SNL 3040/7.3/16 TURA182.563255375190560
SNL 3040/7.3/16 TURT182.563255375190560
SNL 3140/7.3/16 ATURA182.563272411210610
SNL 3140/7.3/16 ATURT182.563272411210610
SNL 3140/7.3/16 TURA182.563272411210610
SNL 3140/7.3/16 TURT182.563272411210610
SNL 3044 ATURA200272411210610
SNL 3044 ATURT200272411210610
SNL 3044 TURA200272411210610
SNL 3044 TURT200272411210610
SNL 3144 ATURA200280434220640
SNL 3144 ATURT200280434220640
SNL 3144 TURA200280434220640
SNL 3144 TURT200280434220640
SNL 3048 ATURA220280434220640
SNL 3048 ATURT220280434220640
SNL 3048 TURA220280434220640
SNL 3048 TURT220280434220640
SNL 3148 ATURA220300474240700
SNL 3148 ATURT220300474240700
SNL 3148 TURA220300474240700
SNL 3148 TURT220300474240700
SNL 3048/8.15/16 ATURA227.013280434220640
SNL 3048/8.15/16 ATURT227.013280434220640
SNL 3048/8.15/16 TURA227.013280434220640
SNL 3048/8.15/16 TURT227.013280434220640
SNL 3052/9.7/16 ATURA239.713300474240700
SNL 3052/9.7/16 ATURT239.713300474240700
SNL 3052/9.7/16 TURA239.713300474240700
SNL 3052/9.7/16 TURT239.713300474240700
SNL 3152/9.7/16 ATURA239.713315516260770
SNL 3152/9.7/16 ATURT239.713315516260770
SNL 3152/9.7/16 TURA239.713315516260770
SNL 3152/9.7/16 TURT239.713315516260770
SNL 3052 ATURA240300474240700
SNL 3052 ATURT240300474240700
SNL 3052 TURA240300474240700
SNL 3052 TURT240300474240700
SNL 3152 ATURA240315516260770
SNL 3152 ATURT240315516260770
SNL 3152 TURA240315516260770
SNL 3152 TURT240315516260770
SNL 3056/9.15/16 ATURA252.413315516260770
SNL 3056/9.15/16 ATURT252.413315516260770
SNL 3056/9.15/16 TURA252.413315516260770
SNL 3056/9.15/16 TURT252.413315516260770
SNL 3056 ATURA260315516260770
SNL 3056 ATURT260315516260770
SNL 3056 TURA260315516260770
SNL 3056 TURT260315516260770
SNL 3156 ATURA260315551280790
SNL 3156 ATURT260315551280790
SNL 3156 TURA260315551280790
SNL 3156 TURT260315551280790
SNL 3056/10.7/16 ATURA265.113315516260770
SNL 3056/10.7/16 ATURT265.113315516260770
SNL 3056/10.7/16 TURA265.113315516260770
SNL 3056/10.7/16 TURT265.113315516260770
SNL 3060/10.15/16 ATURA277.813315551280790
SNL 3060/10.15/16 ATURT277.813315551280790
SNL 3060/10.15/16 TURA277.813315551280790
SNL 3060/10.15/16 TURT277.813315551280790
SNL 3160/10.15/16 ATURA277.813345591300830
SNL 3160/10.15/16 ATURT277.813345591300830
SNL 3160/10.15/16 TURA277.813345591300830
SNL 3160/10.15/16 TURT277.813345591300830
SNL 3060 ATURA280315551280790
SNL 3060 ATURT280315551280790
SNL 3060 TURA280315551280790
SNL 3060 TURT280315551280790
SNL 3160 ATURA280345591300830
SNL 3160 ATURT280345591300830
SNL 3160 TURA280345591300830
SNL 3160 TURT280345590300830
SNL 3064 ATURA300345591300830
SNL 3064 ATURT300345591300830
SNL 3064 TURA300345591300830
SNL 3064 TURT300345590300830
SNL 3164 ATURT300363631320880
SNL 3164 ATURA300363631320880
SNL 3164 TURA300363631320880
SNL 3164 TURT300363631320880
SNL 3064/11.15/16 ATURA303.213345591300830
SNL 3064/11.15/16 ATURT303.213345591300830
SNL 3064/11.15/16 TURA303.213345591300830
SNL 3064/11.15/16 TURT303.213345591300830
SNL 3068/12.7/16 ATURA315.913363631320880
SNL 3068/12.7/16 ATURT315.913363631320880
SNL 3068/12.7/16 TURA315.913363631320880
SNL 3068/12.7/16 TURT315.913363631320880
SNL 3068 ATURA320363631320880
SNL 3068 ATURT320363631320880
SNL 3068 TURA320363631320880
SNL 3068 TURT320363631320880
SNL 3168 ATURA320395675340950
SNL 3168 ATURT320395675340950
SNL 3168 TURA320395675340950
SNL 3168 TURT320395675340950
SNL 3072 TURA340365631320880
SNL 3072 TURT340365631320880
SNL 3172 ATURA3403956953501000
SNL 3172 ATURT3403956953501000
SNL 3172 TURA3403956953501000
SNL 3172 TURT3403956953501000
SNL 3072/13.7/16 TURA341.313365631320880
SNL 3072/13.7/16 TURT341.313365631320880
SNL 3076/13.15/16 TURA354.013395675340950
SNL 3076/13.15/16 TURT354.013395675340950
SNL 3076 TURA360395675340950
SNL 3076 TURT360395675340950
SNL 3176 ATURA3603957153601040
SNL 3176 ATURT3603957153601040
SNL 3176 TURA3603957153601040
SNL 3176 TURT3603957153601040
SNL 3080 ATURA3803956953501000
SNL 3080 ATURT3803956953501000
SNL 3080 TURA3803956953501000
SNL 3080 TURT3803956953501000
SNL 3180 ATURA3804257553801120
SNL 3180 ATURT3804257553801120
SNL 3180 TURA3804257553801120
SNL 3180 TURT3804227553801120
SNL 3084 ATURA4003957153601040
SNL 3084 ATURT4003957153601040
SNL 3084 TURA4003957153601040
SNL 3084 TURT4003957153601040
SNL 3184 ATURA4004558104101170
SNL 3184 ATURT4004558104101170
SNL 3184 TURA4004558104101170
SNL 3184 TURT4004508104101170
SNL 3088 TURA4104257553801120
SNL 3088 TURT4104227553801120
SNL 3188 TURA4104558354201220
SNL 3188 TURT4104558354201220
SNL 3092 ATURA4304558104101170
SNL 3092 ATURT4304558104101170
SNL 3092 TURA4304558104101170
SNL 3092 TURT4304558104101170
SNL 3192 TURA4304658804401280
SNL 3192 TURT4304658804401280
SNL 3096 TURA4504558104101170
SNL 3096 TURT4504558104101170
SNL 3196 TURA4504659204601330
SNL 3196 TURT4504659204601330
SNL 30/500 TURA4704558354201220
SNL 30/500 TURT4704558354201220
SNL 30/530 TURA5004659204601330
SNL 30/530 TURT5004659204601330
SNL 3134 + 22326130150230333170510
SNL 3136 + 22328140160240353180530
SNL 3138 + 22330150170260375190560
SNL 3038 + 22232160180240353180530
SNL 3140 + 22332160180280411210610
SNL 3040 + 22234170190260375190560
SNL 3048 + 22334170190290434220640
SNL 3134 G + 23134170180230333170510
SNL 3134 G + C 3134170180230333170510
SNL 3234 G + 23234170190260375190560
SNL 3036 G + 23036180200230333170510
SNL 3036 G + 24036180200230333170510
SNL 3036 G + C 3036180200230333170510
SNL 3036 G + C 4036180200230333170510
SNL 3136 G + 23136180200240353180530
SNL 3136 G + C 3136180200240353180530
SNL 3138 G + 22236180200260375190560
SNL 3236 G + 23236180200260375190560
SNL 3038 G + 23038190200240353180530
SNL 3038 G + 24038190200240353180530
SNL 3038 G + C 3038190200240353180530
SNL 3038 G + C 4038190200240353180530
SNL 3138 G + 23138190200260375190560
SNL 3140 G + 22238190210280411210610
SNL 3148 + 22338190210310474240700
SNL 3238 G + 23238190210280411210610
SNL 3040 G + 23040200220260375190560
SNL 3040 G + 24040200220260375190560
SNL 3040 G + C 3040200220260375190560
SNL 3040 G + C 4040200220260375190560
SNL 3048 + 22240200220290434220640
SNL 3056 + 22340200220320516260770
SNL 3140 G + 23140200220280411210610
SNL 3140 G + C 3140200220280411210610
SNL 3240 G + 23240200220290434220640
SNL 3044 G + 23044220240280411210610
SNL 3044 G + 24044220240280411210610
SNL 3044 G + C 3044220240280411210610
SNL 3044 G + C 4044220240280411210610
SNL 3144 G + 23144220240290434220640
SNL 3144 G + C 3144220240290434220640
SNL 3148 G + 22244220240310474240700
SNL 3156 + 22344220240320551280790
SNL 3244 G + 23244220240310474240700
SNL 3048 G + 23048240260290434220640
SNL 3048 G + 24048240260290434220640
SNL 3048 G + C 3048240260290434220640
SNL 3148 G + 23148240260310474240700
SNL 3148 G + C 3148240260310474240700
SNL 3152 G + 22248240260320516260770
SNL 3160 + 22348240260350591300830
SNL 3248 G + 23248240260320516260770
SNL 3052 G + 23052260280310474240700
SNL 3052 G + 24052260280310474240700
SNL 3052 G + C 3052260280310474240700
SNL 3064 + 22252260280350591300830
SNL 3152 G + 23152260280320516260770
SNL 3152 G + C 3152260280320516260770
SNL 3164 + 22352260290370631320880
SNL 3252 G + 23252260280350591300830
SNL 3056 G + 23056280300320516260770
SNL 3056 G + 24056280300320516260770
SNL 3056 G + C 3056280300320516260770
SNL 3156 G + 23156280300320551280790
SNL 3156 G + C 3156280300320551280790
SNL 3160 G + 22256280300350591300830
SNL 3168 + 22356280310400675340950
SNL 3256 G + 23256280300350591300830
SNL 3060 G + 23060300320320551280790
SNL 3060 G + 24060300320320551280790
SNL 3060 G + C 3060300320320551280790
SNL 3060 G + C 4060300320320551280790
SNL 3160 G + 23160300320350591300830
SNL 3160 G + C 3160300320350591300830
SNL 3164 G + 22260300320370631320880
SNL 3260 G + 23260300320370631320880
SNL 3064 G + 23064320340350591300830
SNL 3064 G + 24064320340350591300830
SNL 3064 G + C 3064320340350591300830
SNL 3164 G + 23164320340370631320880
SNL 3164 G + C 3164320340370631320880
SNL 3168 G + 22264320340400675340950
SNL 3264 G + 23264320340400675340950
SNL 3068 G + 23068340360370631320880
SNL 3068 G + 24068340360370631320880
SNL 3068 G + C 3068340360370631320880
SNL 3168 G + 23168340360400675340950
SNL 3168 G + C 3168340360400675340950
SNL 3268 G + 232683403704007153601040
SNL 3072 G + 23072360380370631320880
SNL 3072 G + 24072360380370631320880
SNL 3072 G + C 3072360380370631320880
SNL 3172 G + 231723603804006953501000
SNL 3172 G + C 31723603804006953501000
SNL 3180 + 222723603904307553801120
SNL 3272 G + 232723603904307553801120
SNL 3076 G + 23076380400400675340950
SNL 3076 G + C 3076380400400675340950
SNL 3176 G + 231763804004007153601040
SNL 3276 G + 232763804104608104101170
SNL 4076 G + 24076380400400675340950
SNL 3080 G + 230804004304006953501000
SNL 3080 G + C 30804004304006953501000
SNL 3180 G + 231804004304307553801120
SNL 3180 G + C 31804004304307553801120
SNL 3280 G + 232804004304608354201220
SNL 4080 G + 240804004304006953501000
SNL 3084 G + 230844204504007153601040
SNL 3084 G + C 30844204504007153601040
SNL 3184 G + 231844204504608104101170
SNL 3184 G + C 31844204504608104101170
SNL 3284 G + 232844204604708804401280
SNL 4084 G + 240844204504007153601040
SNL 3088 G + 230884404704307553801120
SNL 3088 G + C 30884404704307553801120
SNL 3188 G + 231884404704608354201220
SNL 3288 G + 232884404804709204601330
SNL 4088 G + 240884404704307553801120
SNL 3092 G + 230924605004608104101170
SNL 3092 G + C 30924605004608104101170
SNL 3192 G + 231924605004708804401280
SNL 3192 G + C 31924605004708804401280
SNL 4092 G + 240924605004608104101170
SNL 3096 G + 230964805104608104101170
SNL 3096 G + C 30964805104608104101170
SNL 3196 G + 231964805204709204601330
SNL 4096 G + 240964805104608104101170
SNL 30/500 G + 230/5005005304608354201220
SNL 30/500 G + C 30/5005005304608354201220
SNL 40/500 G + 240/5005005304608354201220
SNL 30/530 G + 230/5305305604709204601330
SNL 40/530 G + 240/5305305604709204601330
  • صفحه اول
  • قبلی
  • صفحه آخر

بیشتر
