مونتاژ غلتک و قفس سوزنی

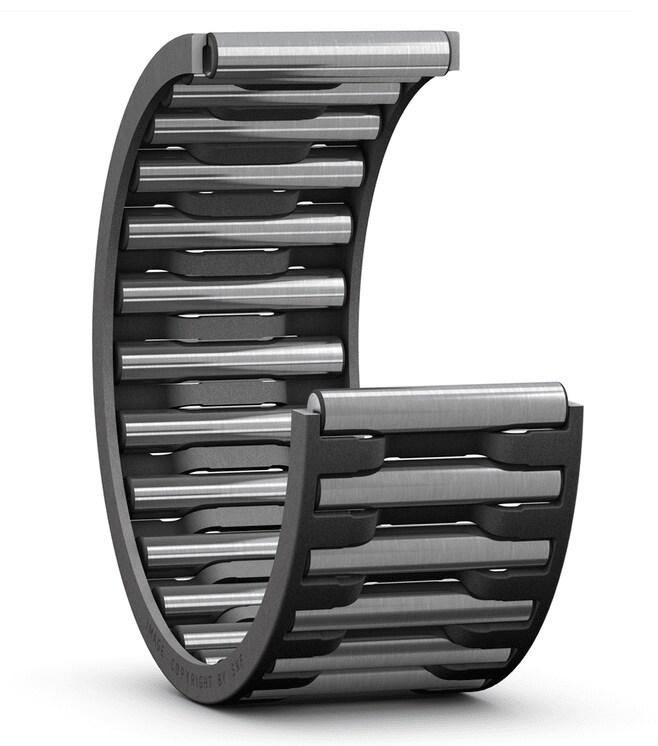

مونتاژ غلتک و قفس سوزنی SKF بلبرینگ های خود ساخته و آماده نصب هستند. در کاربردهایی که شافت و سوراخ محفظه می توانند به عنوان مسیرهای مسابقه ای عمل کنند ، می توان از مجموعه ها برای ایجاد آرایش های تحمل استفاده کرد که به حداقل فضای شعاعی نیاز دارند.
جزئیات محصول
فیلتر محصولات

کلیک کنید

ریست
DesignationPrincipal dimensionsBasic load ratingsSpeed ratings
dynamicstaticReference speedLimiting speed
[]Fw[mm]Ew[mm]U[mm]C[kN]C0[kN][r/min][r/min]
K 3X5X7 TN3571.511.344000045000
K 3X5X9 TN3591.681.534000045000
K 3X6X7 TN3671.421.023800043000
K 4X7X10 TN47102.291.93600043000
K 4X7X7 TN4771.721.323600043000
K 5X8X10 TN58102.922.73600040000
K 5X8X8 TN5882.2923600040000
K 6X9X10 TN69103.33.23400038000
K 6X9X8 TN6982.552.363400038000
K 7X10X10 TN710103.583.753200036000
K 7X10X8 TN71082.812.753200036000
K 7X9X7 TN7971.681.833400038000
K 8X11X10 TN811103.84.253200036000
K 8X11X13 TN811135.015.853200036000
K 8X12X10 TN812104.844.753000034000
K 9X12X10 TN912104.45.23000034000
K 9X12X13 TN912135.727.23000034000
K 10X13X10 TN1013104.575.72800032000
K 10X13X13 TN1013135.9482800032000
K 10X13X16 TN1013166.829.52800032000
K 10X14X10 TN1014105.616.12800032000
K 10X14X13 TN1014137.218.52800032000
K 10X16X12 TN1016127.657.22800032000
K 12X15X10 TN1215104.736.22600030000
K 12X15X13 TN1215136.168.652600030000
K 12X16X13 TN1216137.659.52600030000
K 12X17X13 TN1217139.1310.42600030000
K 12X18X12 TN1218129.52102600030000
K 14X18X101418106.938.652400028000
K 14X18X131418137.9210.22400028000
K 14X18X15 TN1418159.1312.52400028000
K 14X18X1714181710.514.62400028000
K 14X20X121420129.910.62400028000
K 15X19X101519107.219.32400028000
K 15X19X131519138.2511.22400028000
K 15X19X1715191710.815.62400028000
K 15X20X131520139.5211.62400026000
K 15X21X1515211513.816.32400026000
K 15X21X2115212118.724.52400026000
K 16X20X101620107.48102400026000
K 16X20X131620138.58122400026000
K 16X20X1716201711.2172400026000
K 16X22X121622121112.52200026000
K 16X22X1616221614.217.62200026000
K 16X22X2016222017.622.82200026000
K 16X24X2016242020.523.62200024000
K 17X21X101721107.8110.82200026000
K 17X21X1317211310.114.62200026000
K 17X21X1717211711.718.32200026000
K 18X22X101822108.0911.42200024000
K 18X22X131822138.812.92200024000
K 18X22X1718221711.718.32200024000
K 18X24X1218241212.1152000024000
K 18X24X1318241312.515.32000024000
K 18X24X2018242019.4272000024000
K 18X25X2218252222292000024000
K 19X23X131923139.1313.72000024000
K 19X23X1719231712.119.32000024000
K 20X24X102024108.5812.92000022000
K 20X24X132024139.5214.62000022000
K 20X24X1720241712.520.82000022000
K 20X26X1220261212.816.31900022000
K 20X26X1320261313.8181900022000
K 20X26X1720261718.3261900022000
K 20X26X2020262020.1291900022000
K 20X28X162028161922.41800020000
K 20X28X2020282022.928.51800020000
K 20X28X2520282529.2391800020000
K 20X30X3020303034.141.51700020000
K 21X25X132125139.6815.31900022000
K 22X26X102226108.813.71800020000
K 22X26X1322261310.116.31800020000
K 22X26X1722261713.222.81800020000
K 22X28X1722281718.3271700020000
K 22X29X1622291619.425.51700019000
K 22X30X15 TN2230151923.61700019000
K 22X32X2422322431.9401600018000
K 23X35X16 TN23351624.223.21500017000
K 24X28X102428109.35151700019000
K 24X28X1324281310.6181700019000
K 24X28X172428171425.51700019000
K 24X30X1724301718.727.51600018000
K 25X29X102529109.5215.61600018000
K 25X29X1325291310.818.61600018000
K 25X29X1725291714.226.51600018000
K 25X30X1725301717.930.51600018000
K 25X30X2025302020.936.51600018000
K 25X31X1725311718.728.51600018000
K 25X31X2125312123.3381600018000
K 25X32X1625321619.827.51500017000
K 25X33X2025332027.5381500017000
K 25X33X2425332431.947.51500017000
K 25X35X3025353044.6621500017000
K 26X30X1326301311.219.61600018000
K 26X30X1726301714.727.51600018000
K 28X33X1328331314.724.51400016000
K 28X33X172833171933.51400016000
K 28X34X1728341720.933.51400016000
K 28X35X1628351620.5301400016000
K 28X35X1828351822.934.51400016000
K 28X40X2528402542.9551300015000
K 30X34X1330341311.9221400015000
K 30X35X1330351315.125.51300015000
K 30X35X1730351718.7341300015000
K 30X35X2730352729.2601300015000
K 30X37X163037162233.51300015000
K 30X37X1830371825.1391300015000
K 30X40X3030403046.869.51200014000
K 32X37X1332371314.725.51300014000
K 32X37X173237171935.51300014000
K 32X37X2732372728.6601300014000
K 32X38X2032382025.1451200014000
K 32X39X1632391622.935.51200014000
K 32X39X1832391825.541.51200014000
K 32X40X2532402535.858.51200014000
K 32X40X42 ZWTN32404248.4831200014000
K 32X46X3232463262.7831100013000
K 35X40X1335401315.4281200013000
K 35X40X1735401719.8391200013000
K 35X40X2535402528.1601200013000
K 35X40X27 TN35402723.8491200013000
K 35X42X1635421623.337.51100013000
K 35X42X1835421826.4441100013000
K 35X42X2035422029.2501100013000
K 35X42X3035423037.4681100013000
K 35X45X2035452035.2501100012000
K 35X45X3035453050.1801100012000
K 37X42X1737421721.6431100013000
K 38X43X1738431719.8391100012000
K 38X46X2038462034.1571000012000
K 38X46X3238463252.31001000012000
K 40X45X1340451316.832.51000012000
K 40X45X1740451720.541.51000012000
K 40X45X2740452731.473.51000012000
K 40X47X1840471828.6501000011000
K 40X47X2040472031.4571000011000
K 40X48X2040482034.758.51000011000
K 42X47X1342471317.233.51000011000
K 42X47X1742471720.9431000011000
K 42X50X2042502033.657950011000
K 43X48X1743481720.943950011000
K 43X48X2743482731.976.5950011000
K 45X50X1745501721.646.5900010000
K 45X50X274550273381.5900010000
K 45X52X1845521830.357900010000
K 45X53X2045532037.468900010000
K 45X53X2145532136.967900010000
K 45X53X2845532849.598900010000
K 45X59X3245593269.310285009500
K 47X52X1747521722.449900010000
K 47X52X2747522733.683900010000
K 50X55X13.5505513.517.636.585009500
K 50X55X2050552025.56085009500
K 50X55X3050553037.49885009500
K 50X57X1850571831.96480009000
K 50X58X2050582034.16280009000
K 50X58X2550582541.881.580009000
K 52X57X1252571217.236.580009000
K 55X60X20556020276775008500
K 55X60X3055603039.610875008500
K 55X62X1855621834.17175008500
K 55X63X20556320387575008500
K 55X63X2555632549.510475008500
K 55X63X3255633259.412975008500
K 58X65X1858651833.67170008000
K 60X65X2060652028.17270008000
K 60X65X3060653041.311670008000
K 60X66X40 ZW6066405515070008000
K 60X68X2060682041.886.567007500
K 60X68X2360682347.310267007500
K 60X68X2560682551.211267007500
K 65X70X2065702029.276.563007500
K 65X70X3065703041.812563007500
K 65X73X23657323449563007000
K 65X73X3065733053.912563007000
K 68X74X2068742033.68360007000
K 68X74X3068743044.611860007000
K 68X74X35 ZW68743546.812560007000
K 70X76X2070762034.186.560006700
K 70X76X3070763050.114060006700
K 70X78X3070783057.213760006700
K 72X80X2072802039.68556006300
K 73X79X2073792035.29056006300
K 75X81X2075812035.89356006300
K 75X81X3075813050.114356006300
K 75X83X2375832347.311053006300
K 75X83X35 ZW75833560.514653006300
K 75X83X40 ZW75834069.317653006300
K 80X86X2080862036.99853006000
K 80X88X3080883068.217650006000
K 80X88X40 ZW80884072.119350006000
K 80X88X46 ZW80884684.223250006000
K 85X92X2085922042.910848005600
K 90X97X2090972042.911445005300
K 90X98X3090983064.417345005300
K 95X103X3095103306618043005000
K 95X103X40 ZW951034079.222843005000
K 100X107X211001072145.712740004800
K 100X108X27100108275514340004800
K 105X112X211051122145.712940004500
K 110X117X241101172453.916038004300
K 110X118X301101183073.722038004300
K 115X123X271151232760.517036004000
K 120X127X241201272456.117634004000
K 125X133X351251333582.526032003800
K 130X137X241301372458.318632003600
K 135X143X35135143358829030003400
K 145X153X261451532670.422428003200
K 150X160X461501604614047528003000
K 155X163X261551632672.123626003000
K 160X170X461601704614551026002800
K 165X173X261651732676.526524002800
K 175X183X321751833295.235524002600
K 185X195X371851953712342522002400
K 240X250X422402504215763017001900
K 265X280X502652805024285015001700
  • صفحه اول
  • قبلی
  • صفحه آخر

بیشتر


ویژگی ها و مزایا
  • کمترین سطح مقطع در بین یاتاقانهای نورد
    در برنامه هایی که فضای کمتری در دسترس است ، مجموعه غلتک سوزنی و قفس یک راه حل بسیار جمع و جور ارائه می دهند.
  • ظرفیت حمل بار بالا
    غلتک سوزنی و قفس به دلیل تعداد زیاد غلتک ، ظرفیت حمل بار بالایی دارند.
  • سختی زیاد
    غلتک های سوزنی و قفس به دلیل تعداد زیادی غلتک با قطر کوچک ، از سختی بالایی برخوردار هستند.
